The St. Isidore Room has a projector, screen, HDMI connection, audio connections, and two wireless microphones.

Using the Projector and Screen

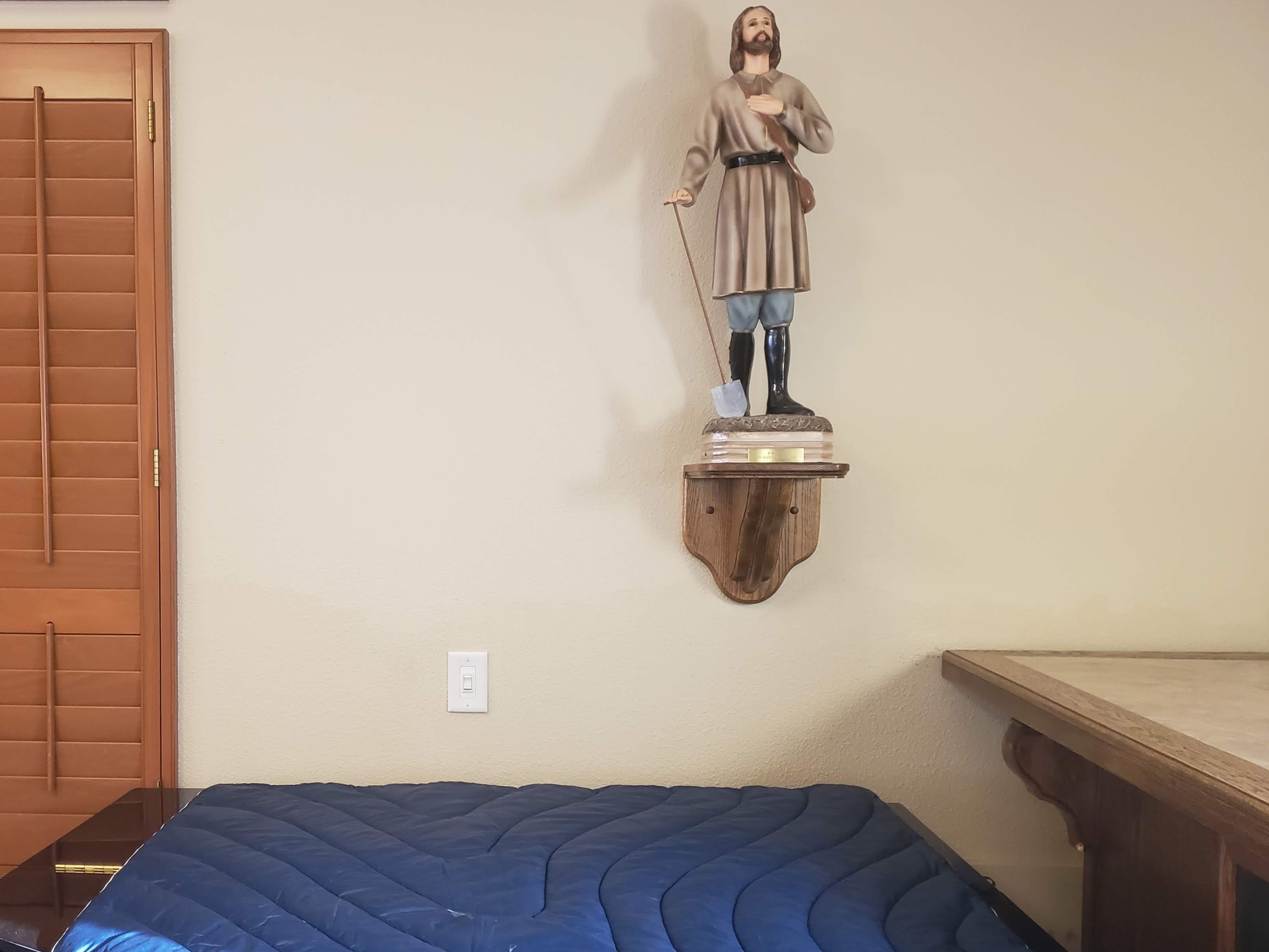

Lower the screen with the switch on the wall next to Joseph:

Open the cabinet on the Mary side (there is a flip-up table to rest your devices) and press the ON button on the box that says VIDEO CONTROL (the button is lit green even when the system is off):

The projector will come on after about three minutes.

Plug your device into the HDMI cord coming from the box that says HDMI:

Audio volume is controlled by the volume knob next to the ON button:

If there is no sound check that the MICS & MUSIC switch to the left of the fireplace is turned on (note that the MASTER VOLUME knob next to this switch does not control volume when you are using the HDMI cord):

Using the Wireless Microphones

Both of the wireless microphones are in the cabinet with the HDMI cord and projector controls.

The handheld microphone has a switch to turn it on:

The lapel microphone has a power button on the front.  Tap it to turn it on.  Hold it down to turn it off:

If there is no sound check that the MICS & MUSIC switch to the left of the fireplace is turned on:

Control the volume with the MASTER VOLUME knob next to the MICS & MUSIC switch.

Using the RCA and AUX Audio Inputs

There is no volume control for these two audio inputs.  You will need to control the volume on your device.

Next to the HDMI input are the MUSIC inputs:

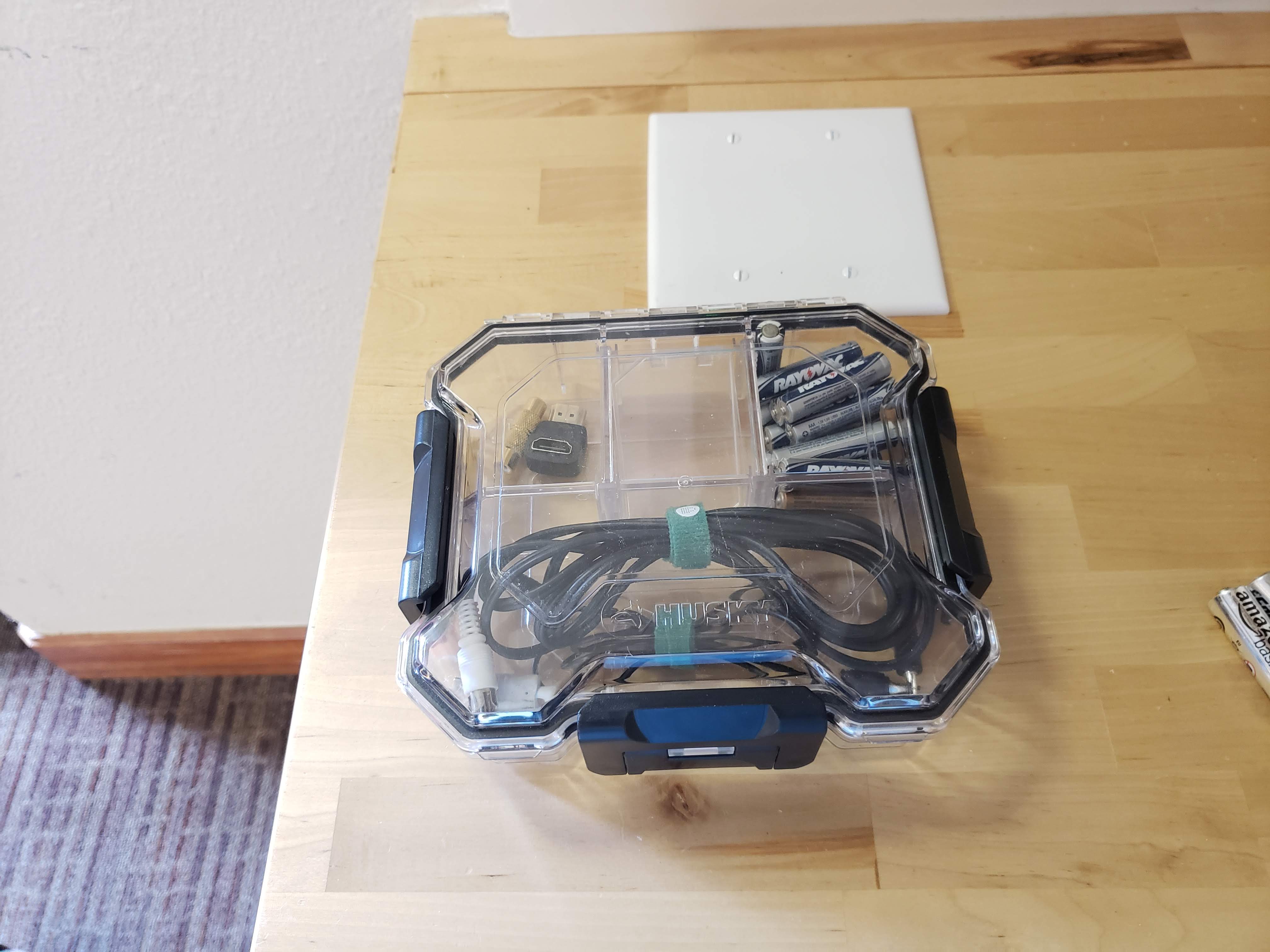

There are cords in the clear plastic box to hook into both inputs.  You only need to connect to either the red and white RCA jacks labeled L and R or the 3.5mm auxiliary input labeled with STEREO:

If there is no sound check that the MICS & MUSIC switch to the left of the fireplace is turned on (note that the MASTER VOLUME knob next to this switch does not control volume when you are using these audio inputs):
